PL-L Energy Advantage

PL-L 40W/830/XEW/4P/IS 25W 1CT25

Energy savings, compact size

Philips Linear Compact Fluorescent Lamps offer designers, specifies and end-users new levels of efficiencies and versatility in sizes, configurations and application possibilities. With so many elegant fixtures available to complement their small size, high light output and advanced technology, Philips Energy Advantage lamps are fast becoming the preferred choice when maximum efficiency and sleek design solutions are required.

Benefits

• 20% energy savings when compared to PL-L 40W
• Sustainable lighting solution – only 1.4mg of mercury per lamp
• Direct replacement for PL-L 40W lamp – no new ballast required
• Instant Start ballast*
• * On Instant Start ballast – a Standard PL-L 40W only draws 32 Watts, so the actual savings is 7 Watts (32W – 25W = 7W)

Features

• Save energy without changing a ballast
• Broad range of color temperatures
• High light output in a compact size
• Excellent color rendering

Applications

• Ideal for applications requiring maximum energy savings

PL-T Triple 4-Pin Base Energy Advantage

PL-T 32W/830/XEW/A/4P/ALTO 27W

Energy savings made simple.

Philips Linear Compact Fluorescent Lamps offer designers, specifies and end-users new levels of efficiencies and versatility in sizes, configurations and application possibilities. With so many elegant fixtures available to complement their small size, high light output and advanced technology, Philips Energy Advantage lamps are fast becoming the preferred choice when maximum efficiency and sleek design solutions are required.

Benefits

• Up to 21% energy savings when replacing the 32W and 42W lamps wth the Philips Energy Advantage 27W and 33W lamps.
• Better for the environment with only 1.4 mg of mercury per lamp.
• New bridged design allows for better efficiency and an even more compact size.

Features

• Sustainable lighting solution
• Broad range of color temperatures
• High light output in a compact size
• Excellent color rendering of 82 CRI
• Available in 27 and 33 Watts with 3000, 3500, and 4100 color temperatures

Applications

• Ideal for applications requiring maximum energy savings

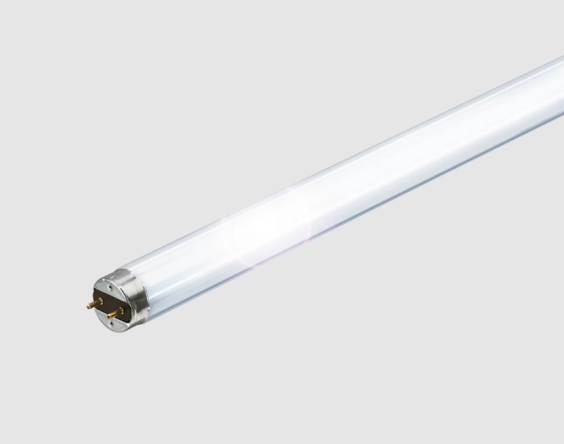

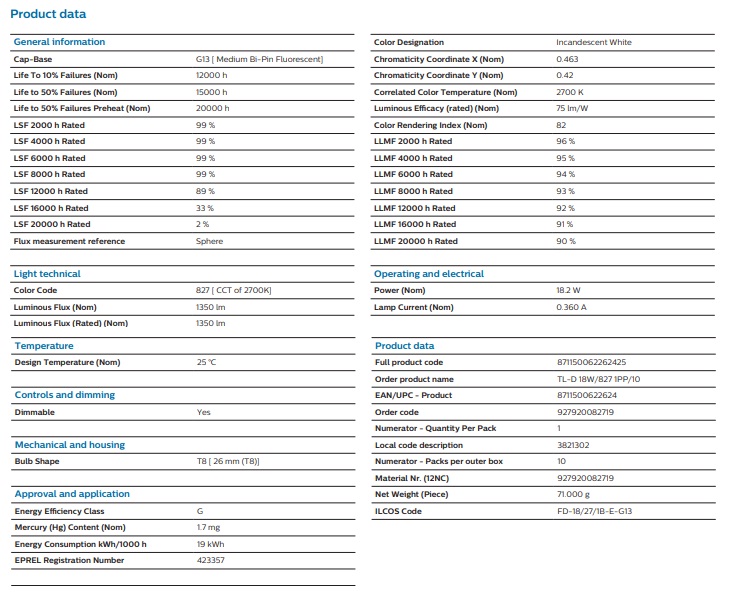

TL-D Consumer Products

TL-D 18W/827 1PP/10

Efficient fluorescent lighting with improved color rendering

The lamp can be operated in existing TL-D luminaire and is available in a wide range of wattages and colors.

Benefits

• Good color rendering
• High energy efficiency and lumen maintenance
• Long lifetime
• Create atmospheres from warm white to cool daylight

Features

• Highly efficient 3-band fluorescent coating
• Low mercury dose
• Can be used with conventional or electronic gear
• Easy retrofit
• Lifetime of 15,000 hours
• UV- and IR-free light
• Free of mercury and hazardous materials – RoHS Compliant

Applications

• Suitable for use in a wide range of luminaires for TL-D fluorescent lamps.

Warning & Safety

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

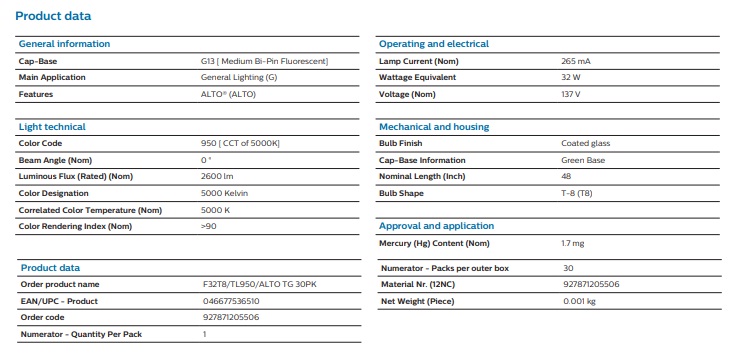

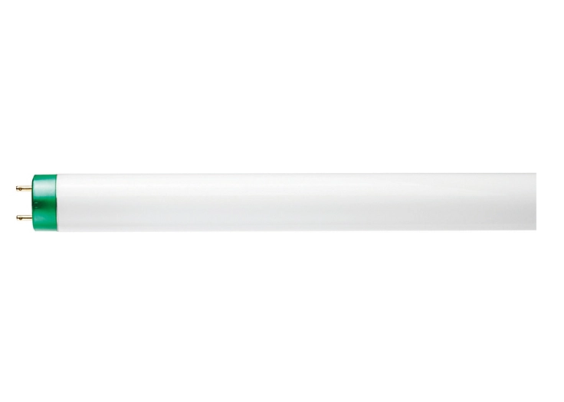

Tuff Guard High CRI T8 Lamps

F32T8/TL950/ALTO TG 30PK

Help protect your customers, employees, and reputation

Tuff Guard T8 lamps are designed to contain shattered glass particles in case of accidental breakage. Coated lighting is essential to help ensure the welfare of your customers, employees, and operation.

Benefits

• Reduced impact on the environment without sacrificing performance
• ALTO II means 50% less mercury than the original ALTO T8 lamps
• High Color Rendering Indez

Features

• 95% lumen maintenance and reduced lamp-end blackening
• 90 color rendering index
• Only 1.7mg of mercury with ALTO II technology
• Protective coating may reduce initial lumens by 5-7%

Applications

• Industry
• Food & Retail

Warning & Safety

• The lamps must be installed and operating in ambient temperatures below 120°F.
• The lamps cannot be used in fixtures employing defective ballasts, ballasts that have been used longer than their rated life or ballasts that are improperly wired.
• The lamps cannot be used in fixtures where poor pin contact occurs
• Lamp types and ballast types must be compatible (rapid start lamps with rapid start ballast, etc.).
• Lamps are recommended for open fixtures.

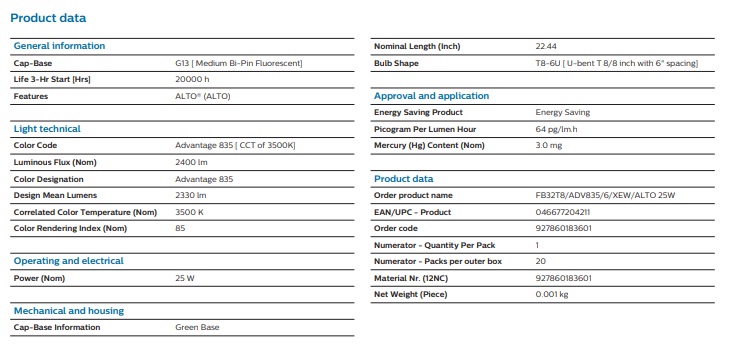

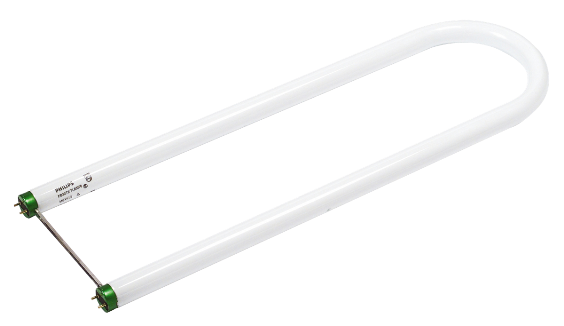

U-Bent Energy Advantage T8

FB32T8/ADV835/6/XEW/ALTO 25W

Energy Saving T8 U-Bent Lamps

Philips Energy Advantage T8 25W U-Bent Lamps are environmentally responsible lamps, featuring energy savings and low mercury.

Benefits

• Sustainable lighting solution – Reduces the impact on the environment—low mercury and energy efficient.
• Philips Energy AdvantageT8 U-Bent warranty period: 36 months.
• Ideal for locations already using the linear Philips Energy Advantage 25WT8 lamp.

Features

• Save 7 watts per lamp instantly and up to 25% in system energy costs when compared to a 32WT8 U-Bent.
• Save over $16.80 in energy costs over the rated average life of the lamp when compared to a 32WT8 U-Bent*
• Reduces the impact on the environment—low mercury and energy efficient.
• Only 3mg of mercury.
• Available in 25 watts with 3000, 3500, 4100 and 5000 Color Temperatures.
• * Based on 24,000 hour rated average life at $0.10 per kWh at 12 hours per start on an instant start ballast (7W x 24000 hours /1000 x $0.10 = $16.80).

Applications

• Ideal for applications requiring maximum energy savings.

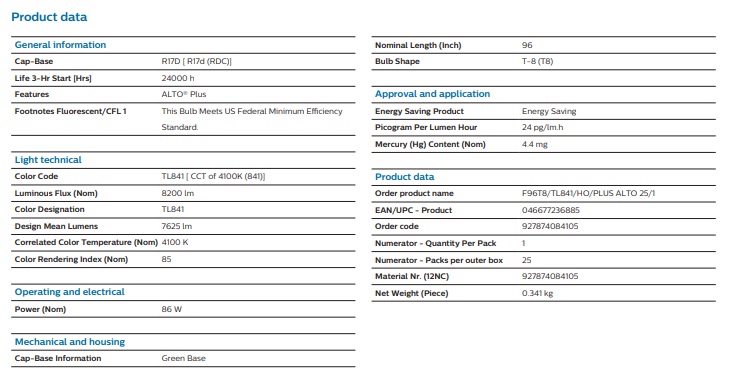

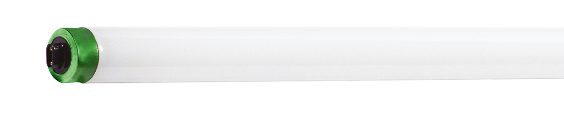

PLUS T8 High Output

F96T8/TL841/HO/PLUS ALTO 25/1

Reduce your maintenance costs

Philips PLUS T8 High Output 8-foot fluorescent lamps reduce the impact on the environment by offering long life and low mercury.

Benefits

• Low mercury – only 4.4 mg per lamps.
• 24 month Warranty Period.
• TCLP Compliant*
• * Fluorescent lamps that are TCLP Compliant reduce the amount of pollutants released into the environment

Features

• Extends the relamping cycle which reduces maintenance and disposal costs.
• PLUS T8 HO 8-foot has the longest rated average life in the industry.
• 30,000 hours rated average life
• Available in 8 foot length 86 watts with 3000, 3500 & 4100 Color Temperatures.
• Average life under engineering data with lamps turned off and restarted once every 12 operating hours.
• More light over life with 95% lumen maintenance than a MH 400/U at 67% lumen maintenance.

Applications

• Ideal for industrial applications requiring longer life.

Philips T12 Standard

F20T12/D-765 25 PK

T12 Linear fluorescent lighting

Low-pressure mercury discharge lamps with a tubular 37 mm envelope

Benefits

• Provides highly reliable and high-quality lighting solution at low cost
• Standard colors with moderate color rendering

Features

• Standard colors with moderate color rendering (Ra 50 – 75)
• Low-pressure mercury discharge lamps with a tubular 37 mm envelope

Applications

• Mostly used in applications where continuous light output is required and color rendering is not an important factor.

MASTER TL5 High Output Eco

MASTER TL5 HO Eco 20=24W/830 UNP/40

The world’s most efficient and brightest fluorescent lighting

This extremely efficient TL5 lamp (tube diameter 16 mm) saves considerable energy by simple lamp-for-lamp replacement. The TL5 HO Eco lamp is optimized for installations requiring high light output and offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.

Benefits

• Up to 10 % energy saving with simply changing the lamp
• The same quality of light as compared with MASTER TL5 HO lamps
• All benefits of regular TL5 lamps

Features

• High lamp efficacies up to 109 lm/W
• Up to 10% power reduction in comparison with standard MASTER TL5 HO lamps

Applications

• Offers very economic solutions for high-ceiling lighting in shops, industry and department stores
• The high luminous flux gives optimal results in aesthetic pendants and furniture-mounted luminaires in offices, workshops, restaurants and reception areas

Warning & Safety

• A reduction in energy consumption is only achieved with current-controlled gear.
• The lamps operate perfectly with power-controlled gear, but in that case the light output can be up to 10% higher.
• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

MASTER TL5 High Efficiency Eco

MASTER TL5 HE Eco 13=14W/830 UNP/40

The world’s most efficient fluorescent lighting

This extremely efficient TL5 lamp (tube diameter 16 mm) saves considerable energy by simple lamp-for-lamp replacement. The TL5 HE Eco lamp offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.

Benefits

• Up to 10 % energy saving with simply changing the lamp
• The same quality of light as compared with MASTER TL5 HE lamps
• All benefits of regular TL5 lamps

Features

• High lamp efficacies up to 114 lm/W
• Up to 10% power reduction in comparison with standard MASTER TL5 HE lamps
• Fluorescent Super 80 light quality

Applications

• Ideally suited for recessed, surface-mounted and suspended luminaires e.g. in offices, shops, schools, public buildings and industry (low ceiling), wherever high-quality, energy-efficient lighting is required

Warning & Safety

• A reduction in energy consumption is only achieved with current-controlled gear.
• The lamps operate perfectly with power-controlled gear, but in that case the light output can be up to 10% higher.
• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

LV Halogen Oven Capsules

Caps OV 20W G4 12V 1CT/50

Halogen capsules for oven lighting

Halogen capsules ideal as replacement lamp for many specific oven types. Resistant to high temperatures, perfectly fitting oven application.

Benefits

• Suitable also for ovens with pyrolisys function (tolerable ambient temperature up to 450°C, lamps must be switched off during self-cleaning)
• For use in shielded oven luminaires only

Features

• Heat resistance up to 300°C
• Compact size, matching oven luminaire
• 2000 hours lifetime
• Instant start
• 50 000 switchig cycles

Applications

• Oven lighting
