Philips MASTER LEDbulb

MASTER LEDbulb range delivers a dimmable glow effect for a welcoming, warm atmosphere, making it ideal for general lighting applications in the hospitality industry. Its unique design radiates warm light in all directions, making it a true alternative to the incandescent lamp. It is particularly suitable for public areas such as lobbies, corridors, stairwells, where the light is always on.Compatible with existing fixtures with an E27 or a B22 holder and designed for retrofit replacement of incandescent bulbs, MASTER LEDbulb delivers huge energy savings and minimises maintenance cost without any compromise on light quality.

Benefits

• 85{b9c3e1decd1d9a6381545d5ae59cfbfb6f66ae08352fb0d9f4b009db789225db} energy saving compared with traditional incandescent lamps
• Easy (retrofit) replacement

Features

• Unique optical design allows for sparkling light
• Compatible with an extensive range of dimmers
• Lifetime of 25,000 hours
• Dimmable
• Warm white light
• UV- and IR-free light

Applications

• Hotels, restaurants, bars, cafés
• Lobbies, corridors, stairwells, reception areas

Warning & Safety

• Operating temperature range is between -20° C and 45° C ambient
• Not intended for use with emergency light fixtures or exit lights
• Only to apply in dry or damp locations and most of open fixtures with lamp-holders that offer sufficient space (10 mm free air space)

MASTER LEDspot PAR High Lumen

Philips High Lumen PAR30L integrates a leading COB LED light source and a compact high-efficiency driver into a traditional CDM PAR30L form-factor. It brings out the beauty in merchandise with brighter, high-performance lighting. Additionally, the lamp features an over temperature protection (OTP) to ensure a long operating life time.

Benefits

• Lower initial investment for LED CDM replacement PAR30
• High efficiency solution >100 lm/W
• Up to 43{b9c3e1decd1d9a6381545d5ae59cfbfb6f66ae08352fb0d9f4b009db789225db} energy saving compared to standard CDM lamps

Features

• Easy retrofit to CDM PAR30L lamps with E27 base
• Lifetime of 25,000 hours
• Free of mercury and hazardous materials – RoHS Compliant
• Emits virtually no heat and will not fade colors
• UV- and IR-free light

Applications

• Shops, hotels, restaurants, museums

MasterConnect LEDtube EM/Mains T8

Philips MasterConnect LEDtube EM/Mains T8 makes it easy to upgrade to a connected lighting system. Its 2.4 GHz mesh networking technology enables wireless integration with a variety of control devices, such as sensors and switches. The result? Even more energy saving and enhanced flexibility in your space. Through dimming, occupancy sensing and/or daylight harvesting, lamps deliver 50{b9c3e1decd1d9a6381545d5ae59cfbfb6f66ae08352fb0d9f4b009db789225db} or more energy saving thanks to Master Connect technology.

Benefits

• 50{b9c3e1decd1d9a6381545d5ae59cfbfb6f66ae08352fb0d9f4b009db789225db} energy saving vs conventional lamps, plus 20-40{b9c3e1decd1d9a6381545d5ae59cfbfb6f66ae08352fb0d9f4b009db789225db} via advanced controls
• A flexible lighting solution to meet your dynamic needs in the space
• On/off, dimming and scene setting to promote productivity and user comfort

Features

• Retrofit to existing fluorescent lamps on EM ballast installations
• Easy to commission and (re-)configure
• Superior lighting performance over 50,000 hrs lifetime
• Reliable and secure wireless communication within a 2.4 GHz mesh network

Applications

• Office, education and retail
• Parking, industry and warehouses

SmartBright LED Batten G2

BN012C LED20/NW L1200 G2

Whether for a new building or renovation of an existing space, customers want lighting solutions that provide quality of light and substantial energy and maintenance savings. This new batten range of LED products can be used to replace traditional battens with fluorescent lamps. The process of selecting, installing and maintaining is so easy – it’s a simple switch.

Benefits

• More slim: One piece PC extrusion housing
• Easier for installation: Central and side cable entry
• More types: Interconnectable version – Turnkable version added BN013C (NEW)

Features

• One piece PC extrusion housing: Single piece Integral design for better aesthetics
• Central and side cable entry Ready solution for both new point and replacement
• Newly designed male/female socket continuous light line
• 2,000lm@4ft and 1,000lm@2ft Greater brightness
• CRI 80, SDCM <6, 100lm/WSuperior light quality combined with good energy savings
• Uniform Light Optimal optical design to ensure no spottiness
• L70 25k hoursReliable long lasting solution

Applications

• General lighting, indoor
• Indoor car park, industry, shop, office, school
• Long distance linear lighting

3-circuit Square RCS750

RCS750 3C L1000 WH (XTS4100-3)

3-circuit track

The RCS750 3-circuit square track system is made up of a solid aluminium track available in lengths of 1, 2, 3 and 4 m with four electrical conductors. Any given configuration can be created easily: horizontal or vertical, mounted on or in the ceiling, on the wall or on free-standing panels. The system can also be used as a floating structure. All luminaries have a separate power supply and can be switched selectively. They can be moved easily to change the lighting and presentation. In this way, a multi functional track system can be created for accent lighting as well as for
suspending advertising and decorative material. A range of adaptors, power supply connections and mounting accessories is also available.

Benefit

• Flexible 3-circuit track system for the professional user, allowing any required configuration to be created relatively easily
• All luminaires have separate power switching so they can easily be moved, for example to create changing atmospheres in shop windows or interiors
• Can be applied as a ‘floating’ structure using the suspension tubes and clamps provided

Applications

• Retail
• Indoor architectural lighting

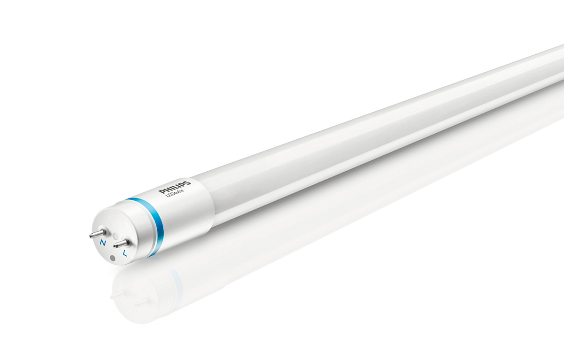

MASTER LEDtube EM/Mains

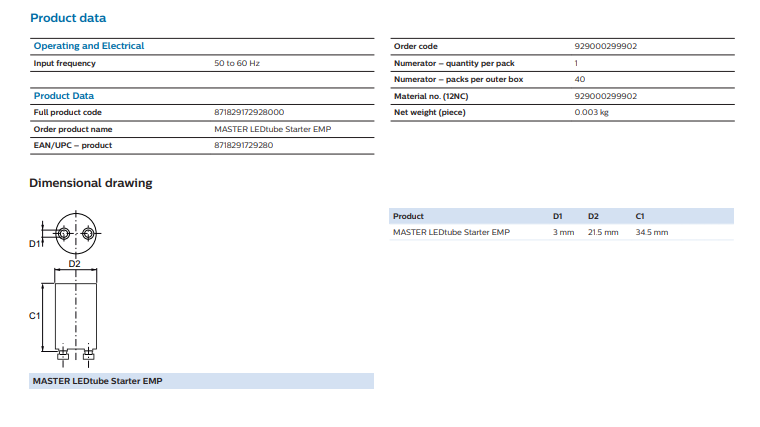

MASTER LEDtube Starter EMP

The Philips MASTER LEDtube integrates a LED light source into a traditional fluorescent form factor. Its unique design creates a perfectly uniform visual appearance which cannot be distinguished from traditional fluorescent. This product is the ideal solution for up lamping in general lighting applications.

Benefits

• Reduced operational cost thanks to lower energy consumption
• Lower maintenance cost thanks to 2-3 times longer lifetime than normal fluorescent tubes
• Fastest and easiest way to upgrade existing luminaire to LED technology; 100%- safe installation process

Features

• Only 50% energy consumption compared to fluorescent tubes
• Extra-long life of 40,000 hours
• Retrofit to existing T8 lamps on EM or HF electronic gear
• Full safety features and EM Protector safety device
• No mercury

Applications

• Car parks
• Warehouses
• Transport and distribution areas
• Front & back of house retail & hospitality

MASTER LED tube Instant Fit HF T5

MAS LED tube HF 1200mm HO 26W 830 T5

Philips MASTER LED tube Instant Fit T5 integrates a LED light source into a traditional fluorescent form factor. Its unique design creates a perfectly uniform visual appearance which cannot be distinguished from traditional fluorescent. The Philips MASTER LED tube Instant Fit T5 is the ideal solution for customers who have higher light output requirements and want to maximize value over the lifetime.The full energy savings & longer lifetime result in attractive payback times and TCO benefits.

Benefits

• Reduced operational cost thanks to lower energy consumption
• Lower maintenance cost thanks to 2-3 times longer lifetime than normal fluorescent tubes
• The fastest and easiest way to upgrade existing luminaires to LED technology, with a 100% safe installation process

Features

• A retrofit replacement for existing T5 lamps on HF ballast installations
• HF compatibility: no wires to replace, no hassle changing drivers; our InstantFit solution works with High Frequency electronic ballasts, making it easy and safe for all installation methods
• Electronic Pin safety: with Philips products you can safely touch the other end-cap when installing the tube. The integrated driver is also safely isolated from touchable parts. Philips LED tubes adhere to all UL and IEC pin safety requirements

Applications

• The ideal solution for demanding applications with a need for extra energy savings: office, school, retail

UVB Broadband TL

TL 20W/12 RS SLV/25

The UVB Broadband TL lamps emit radiation in the ‘B’ bandwidth of the UV spectrum (290 to 315 nm) and are therefore suitable for phototherapy systems designed to treat skin diseases such as psoriasis. N.B.: Our UVB lamps are NOT registered with FDA as medical devices as they are NOT packaged or labeled for commercial distribution for health-related purposes. US customers are referred to the UVB and UVA lamp range brochure US version.

Benefits

• Photo-sensitizing agent – free treatment

Features

• Emission range from 290-320 nm. Peak at 302 nm

System

• Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start systems

Applications

• Psoriasis

Warning & Safety

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

Emergency downlight EM120B

EM120B LED2S EL3 WH

White

Safety is of utmost importance for building owners, and therefore having proper emergency lighting in place is a major concern for them. The Emergency downlight EM120B offers an easy solution for stand alone emergency lighting, that is fully compliant with European regulations. The lithium battery (LiFePO4) has many advantages over nickel based products, as it has a longer lifetime, better discharge behaviour, is produced in a more welfare friendly way and can be recycled. Two interchangeable lenses are supplied with the product, to adjust the beam angle to the application.

Benefits

• Meets European standards for emergency lighting luminaires
• Lithium based battery type provides longer lifetime, low self discharge and high temperature tolerance
• Welfare friendly solution versus nickel based products as the battery can be recycled

Features

• Two interchangeable lens optics; corridor and open area
• 3 hours emergency lighting with optional self test
• 180 lm light output caters for typical application areas

Applications

• Office environments
• Corridors and transportation areas
• Hospitality
• Retail

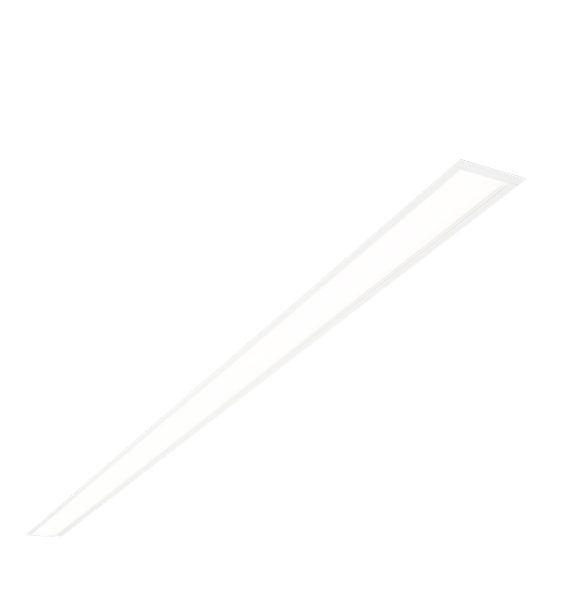

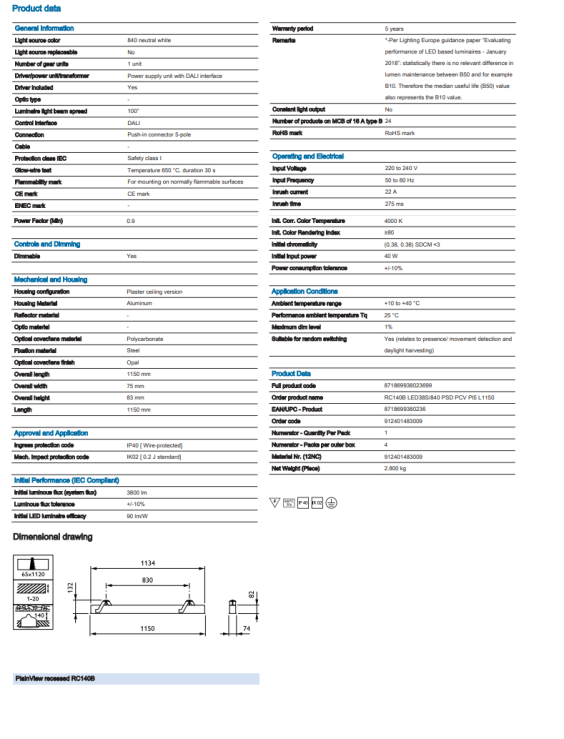

PlainView, recessed

RC140B LED38S/840 PSD PCV PI5 L1150

840 neutral white – Power supply unit with DALI interface – Plaster ceiling version – Push-in connector 5-pole – 1150 mm

Light line solutions are always in fashion. therefore we know that delivering innovation in this field is crucial. PlainView is a modern looking, neat luminaire offering comfortable, good quality lighting and can also work as a design element. The luminaires offer high quality specifications and flexibility with different options for lumen packages. Thanks to these features and benefits, PlainView delivers ideal lighting in the non-working areas of
professional spaces such as offices, educational institutes, and also the welcoming areas and entrances of retail spaces.

Benefits

• Clean and uniform light
• Multiple application use
• Easy to install and maintain
• Long lasting, reliable luminaire

Features

• Homogeneous exit window
• Can create standalone and continuous lines of light and offers recessed and suspended variants
• Same modules are used for standalone and continuous light lines providing flexibility and making installation easier
• Delivers Philips quality

Applications

• Office – circulation and common areas
• Education – circulation and common areas
• Retail – general lighting in stores
• Healthcare – circulation and common areas
